Description
Features

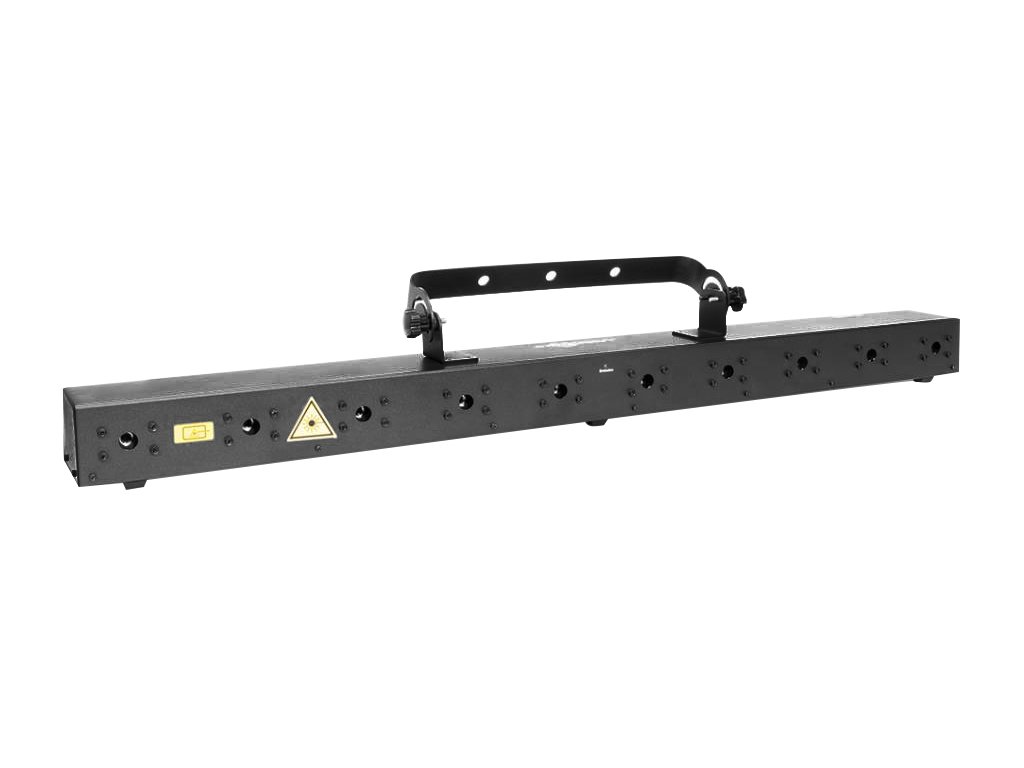

Laser bar class 3B with 10 x laser module in blue (B), controlled separately
- Show laser with analog color modulation
- Fan effect; multi beam effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; sound to light via microphone; master/slave function
- With mounting bracket
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x Interlock, 1 x key, 2 x mounting bracket, 8 x screw, 1 x hex key
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| IP classification: | IP4X |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Laser class: | 3B |
| Laser color: | Blue (B) |
| Laser module: | Blue (B) 140 mW 450nm |
| DMX channels: | 13 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone; master/slave function |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Color: | Black |
| Dimensions: | Length: 1 m Width: 16 cm Height: 8 cm |
| Weight: | 5,90 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 7640144994891 | 7,05 kg | 110,5cm x 19,5cm x 19,5cm |
