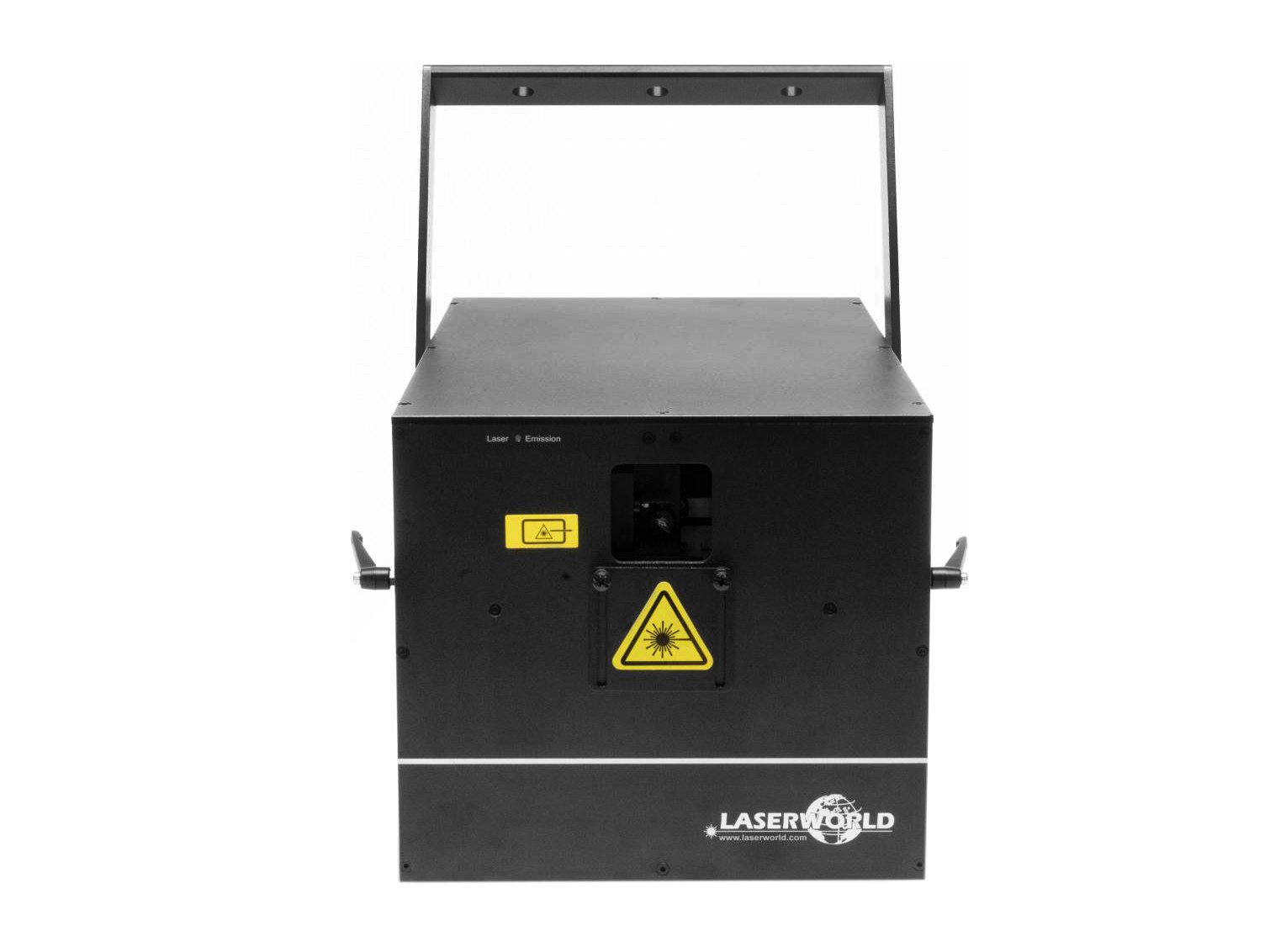

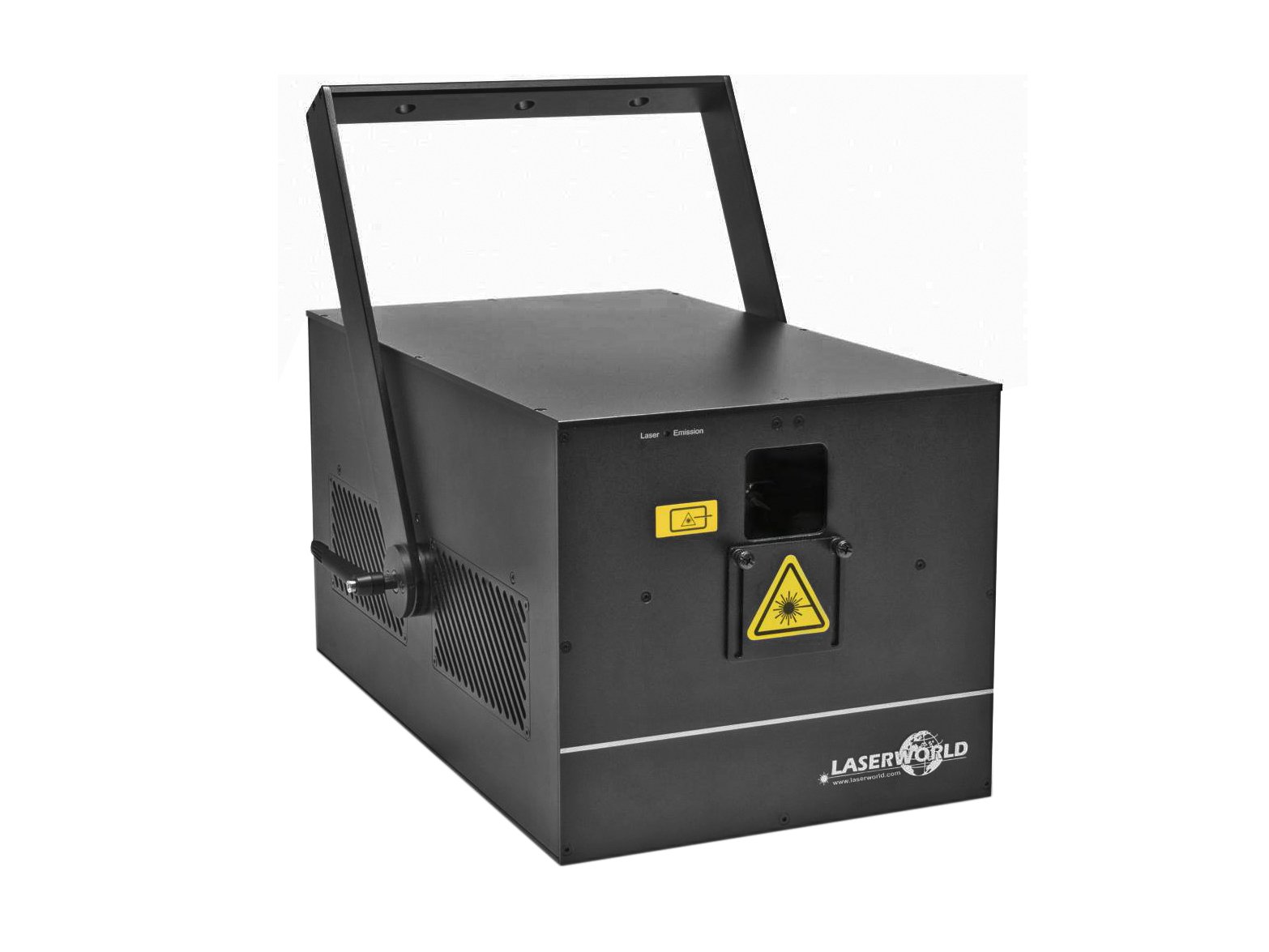

Pure diode laser system
- Control via DMX; stand-alone; sound to light via microphone; ILDA; master/slave function
- With mounting bracket
- Monochrome 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school
- Application possibility: Suspended
- For further information about this product, please refer to the Data Sheet under “Downloads”
Package contents
- 1 x laser, 1 x user manual, 1 x power cord, 1 x Interlock, 1 x key, 2 x decorative element
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 400 W |
| IP classification: | IP4X |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Laser class: | 4 |
| Laser color: | R/G/B |
| Laser module: | Red (R) 5000 mW 638nm Green (G) 5200 mW 520nm Blue (B) 12000 mW 450nm |
| Control: | DMX; stand-alone; sound to light via microphone; ILDA; master/slave function |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Monochrome 4 digit 7-segment LED display |
| Dimensions: | Length: 40 cm Width: 24 cm Height: 22 cm |
| Weight: | 18,90 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 7640144996048 | 20,30 kg | 56cm x 37cm x 29cm |
