Description
Features

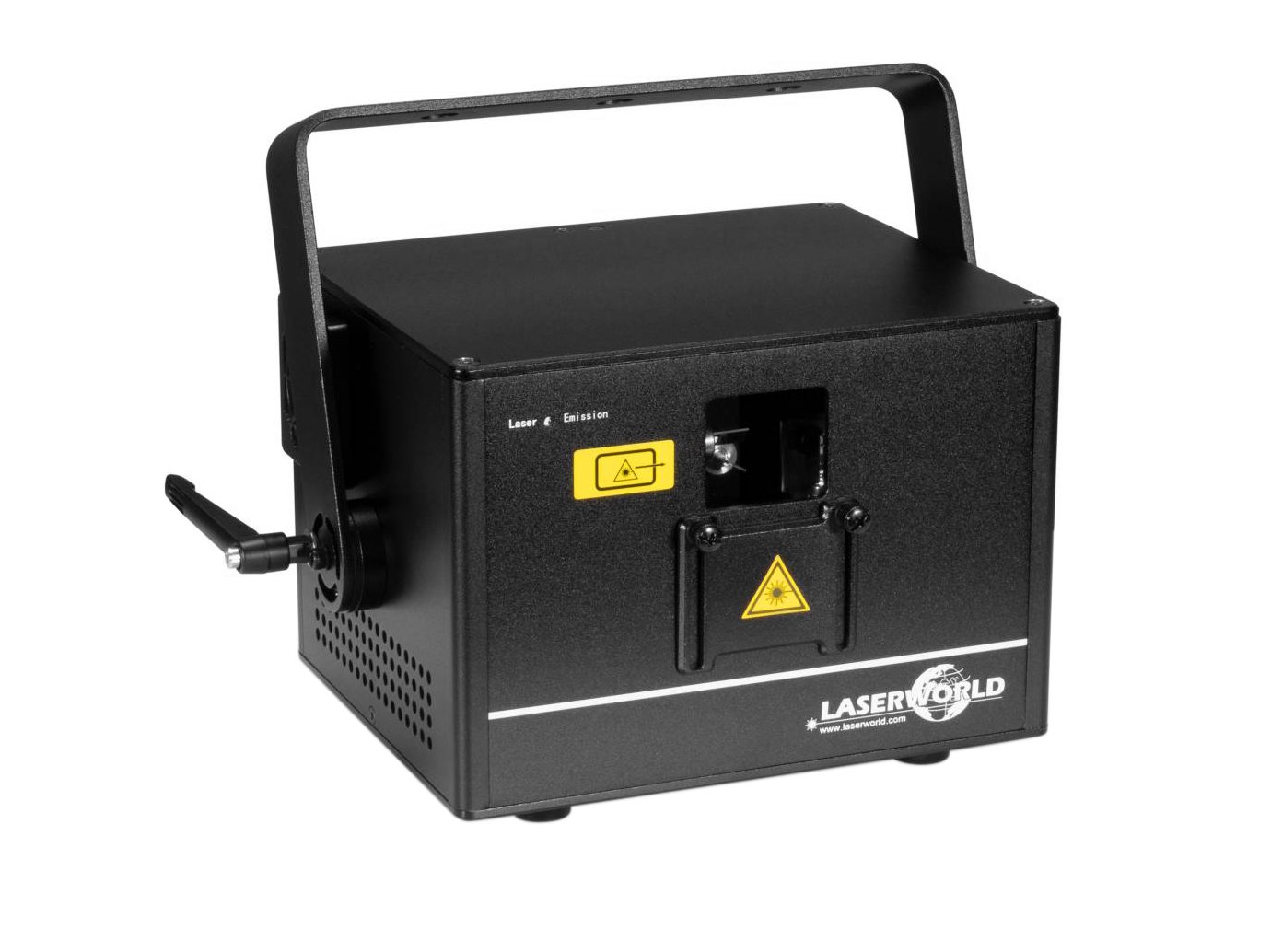

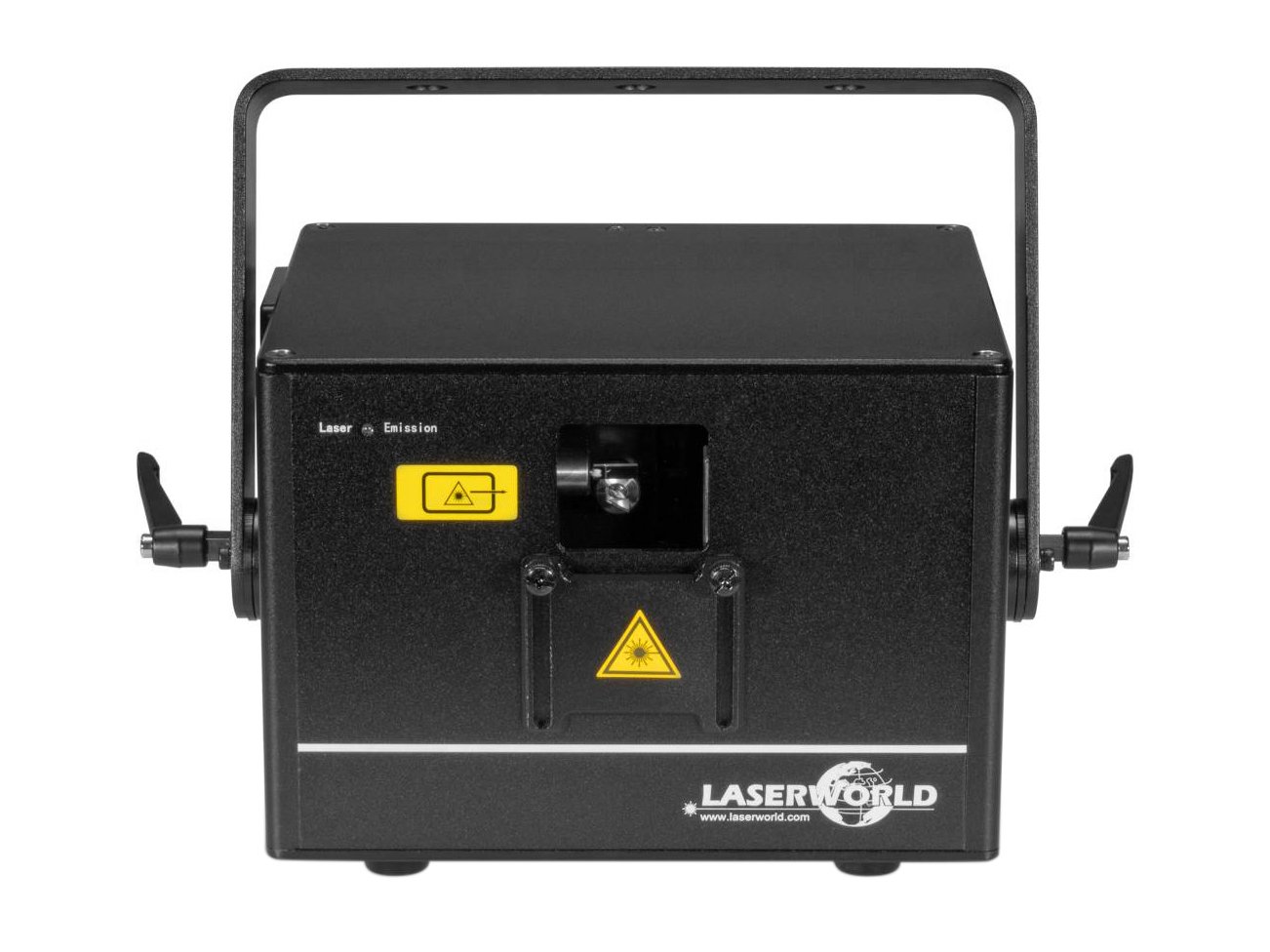

Pure diode laser system
- Full color mixing laser with analog color modulation
- Control via sound to light via microphone; stand-alone; master/slave function; ILDA; DMX
- Integrated show programs
- 4 digit 7-segment LED display

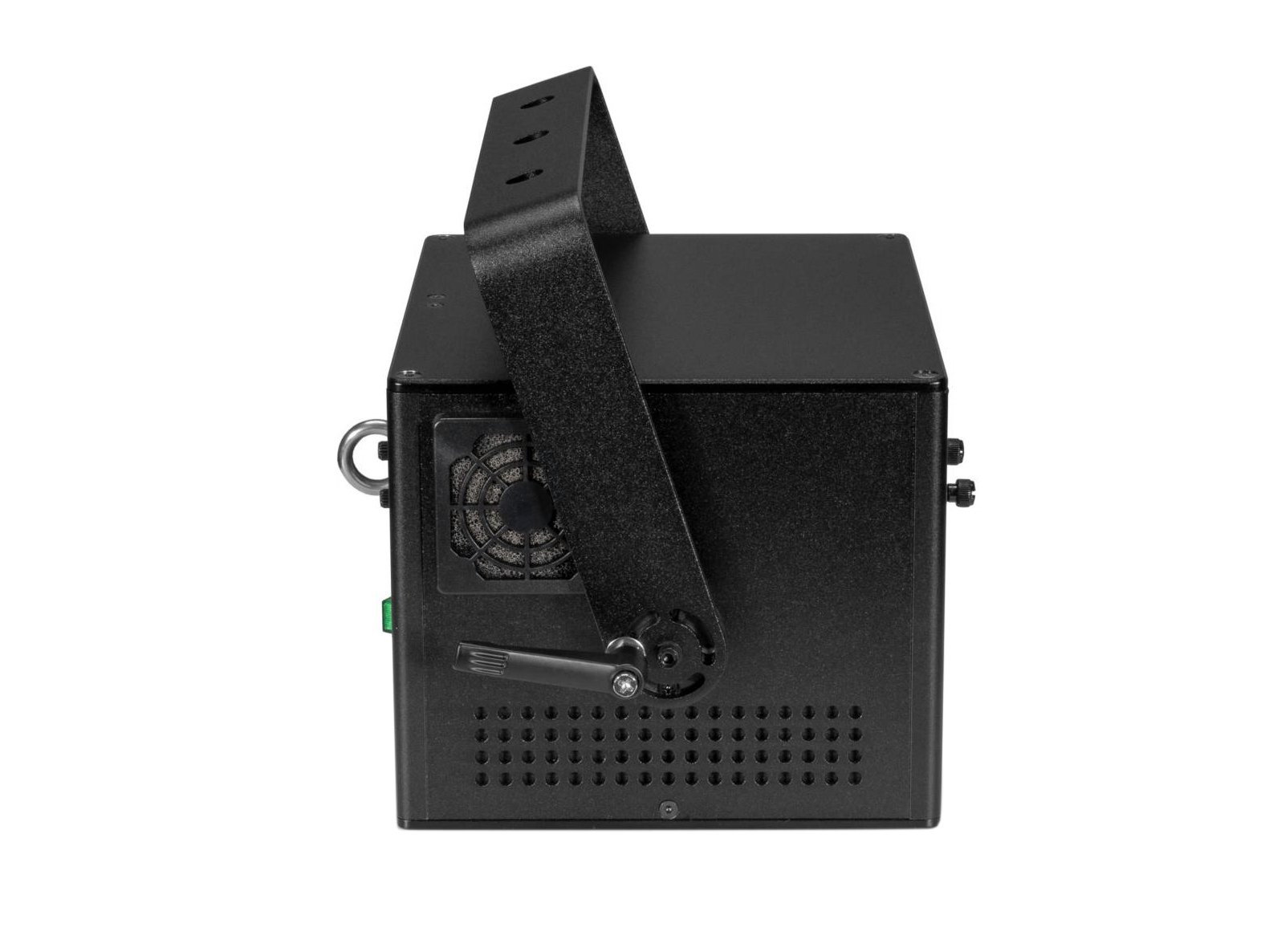

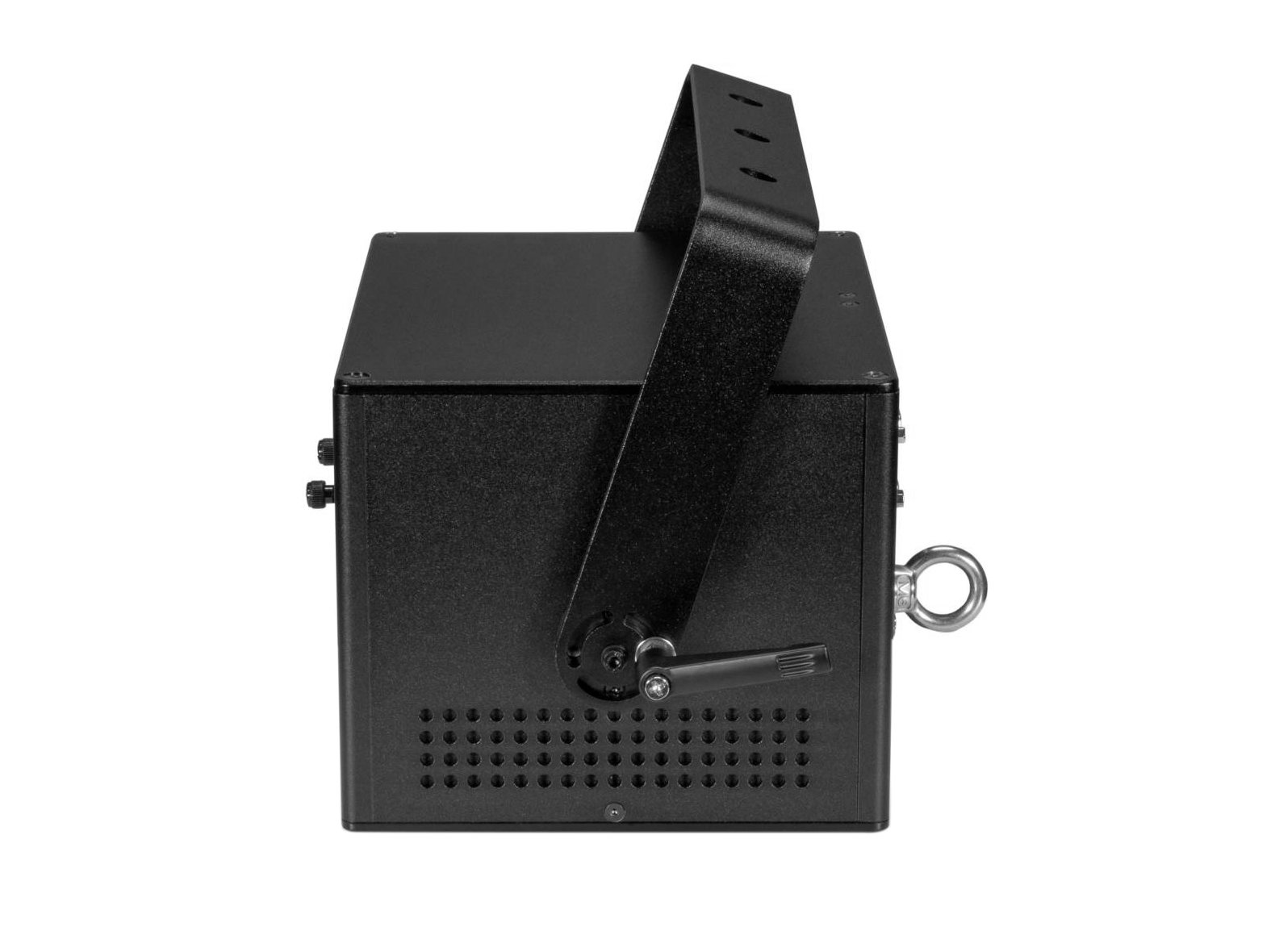

- With mounting bracket
Package contents
- 1 x laser, 1 x user manual, 1 x power cord, 2 x key, 1 x Interlock
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 46 W |
| IP classification: | IP4X |
| Protection class: | Protection class I |

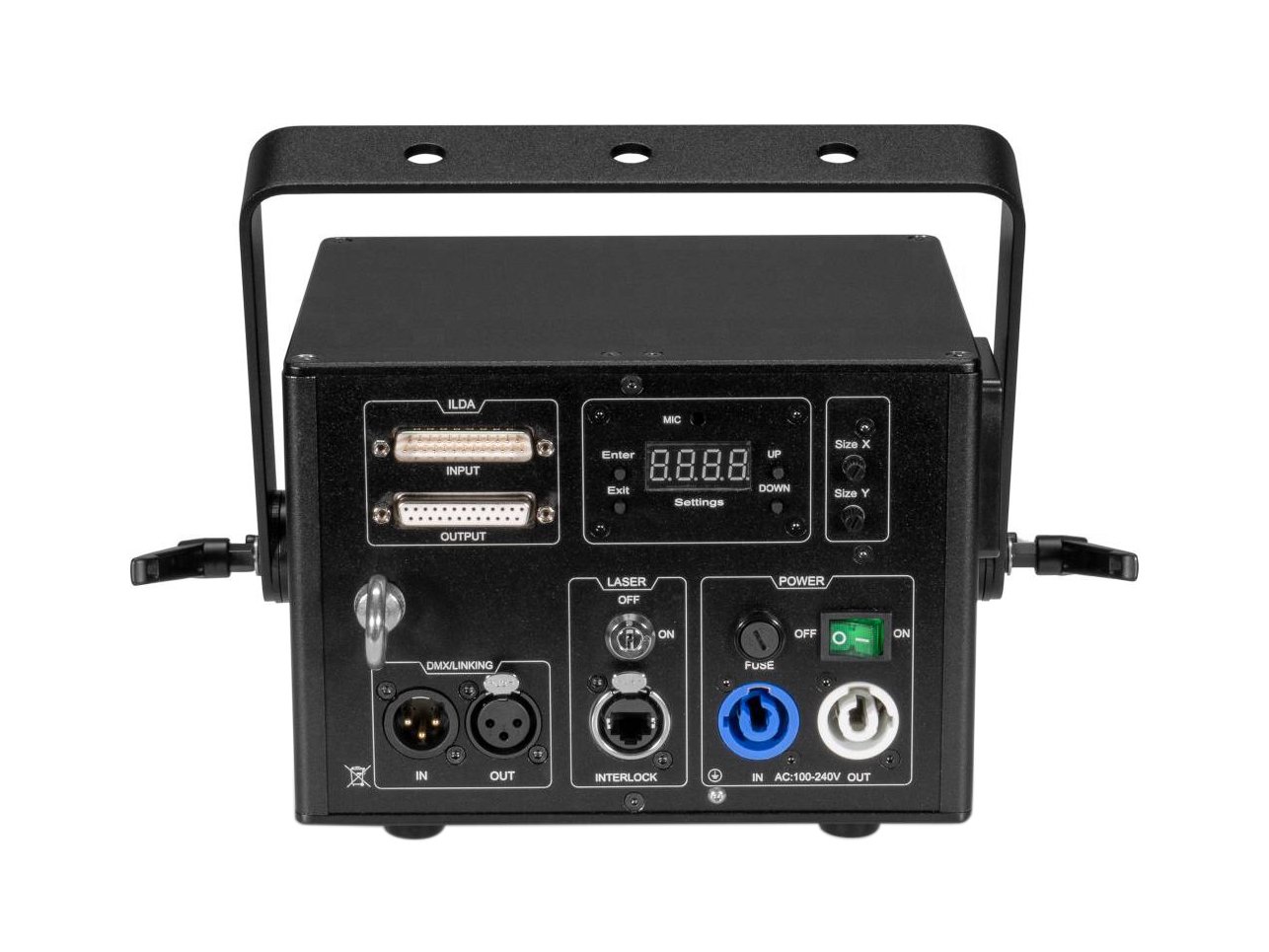

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, F 4 A fuse replaceable |
| Laser class: | 4 |
| Laser color: | R/G/B |
| Laser module: | Blue (B) 1500 mW 450nm Green (G) 900 mW 520nm Red (R) 800 mW 638nm |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | Sound to light via microphone; stand-alone; master/slave function; ILDA; DMX |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 1 x 4 digit 7-segment LED display |
| Dimensions: | Length: 20 cm Width: 16,5 cm Height: 14,1 cm |
| Weight: | 3,40 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 7640144995997 | 4,05 kg | 34cm x 28cm x 21cm |
