Description
Features
Advanced lighting-control recorder and stand-alone playback unit for 6144 channels
- Can transmit up to 6144 DMX channels
- The device is cooled by passive convection cooling
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; installation; stage; restaurants, bars and hotels; architecture
- For further information about this product, please refer to the Data Sheet under “Downloads”
Package contents
- 1 x device, 1 x user manual, 1 x network cable, 2 x fixation clip, 1 x terminating plug (power)
Technical specifications
| Power supply: | 12/24V DC |
| Power consumption: | 1,5 W |
| IP classification: | IP20 |
| Power connection: | Mains input via special connector recessed mounting Mains input via USB, type B |
| DMX channels: | Output 6144 |
| Network connection: | Protocol: Art-Net 3 via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s Protocol: Streaming ACN (sACN / ANSI E1.31) via 2x RJ-45 (F) mounting version, 10/100/1000 Mbit/s |
| Cooling: | Passive convection cooling |

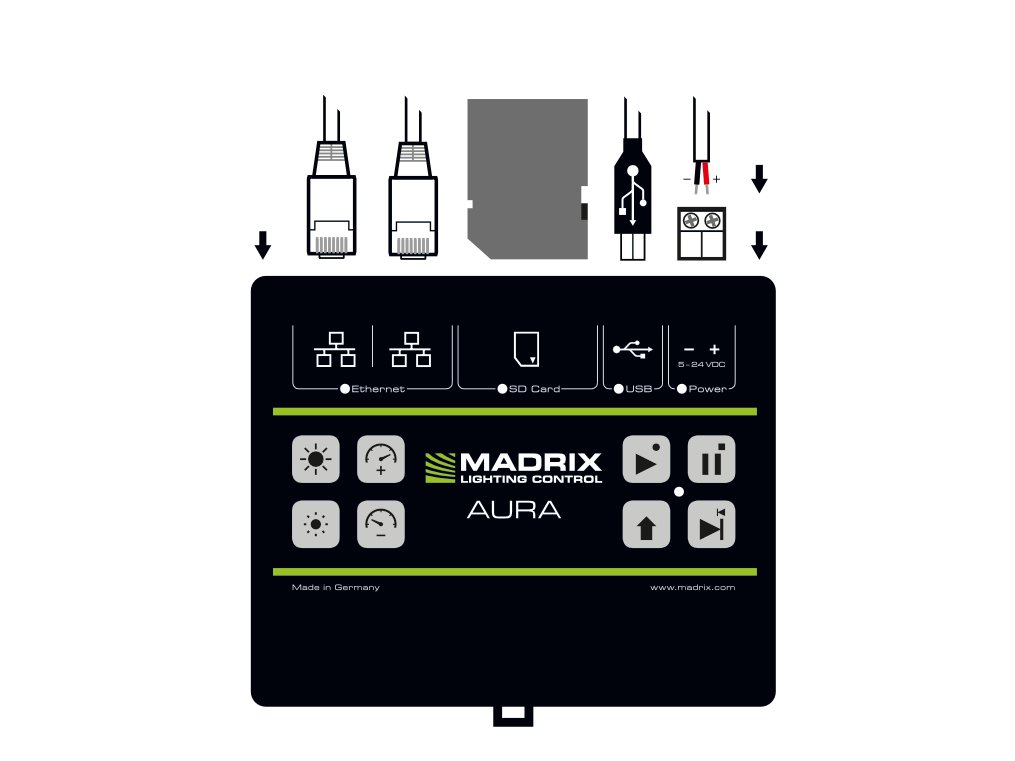

| Connections: | Network connection via 2 x RJ-45 (F) mounting version |
| USB port: | Type B |
| Weight: | 190 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4260263421325 | 0,34 kg | 19,5cm x 13,5cm x 7cm |
