Description

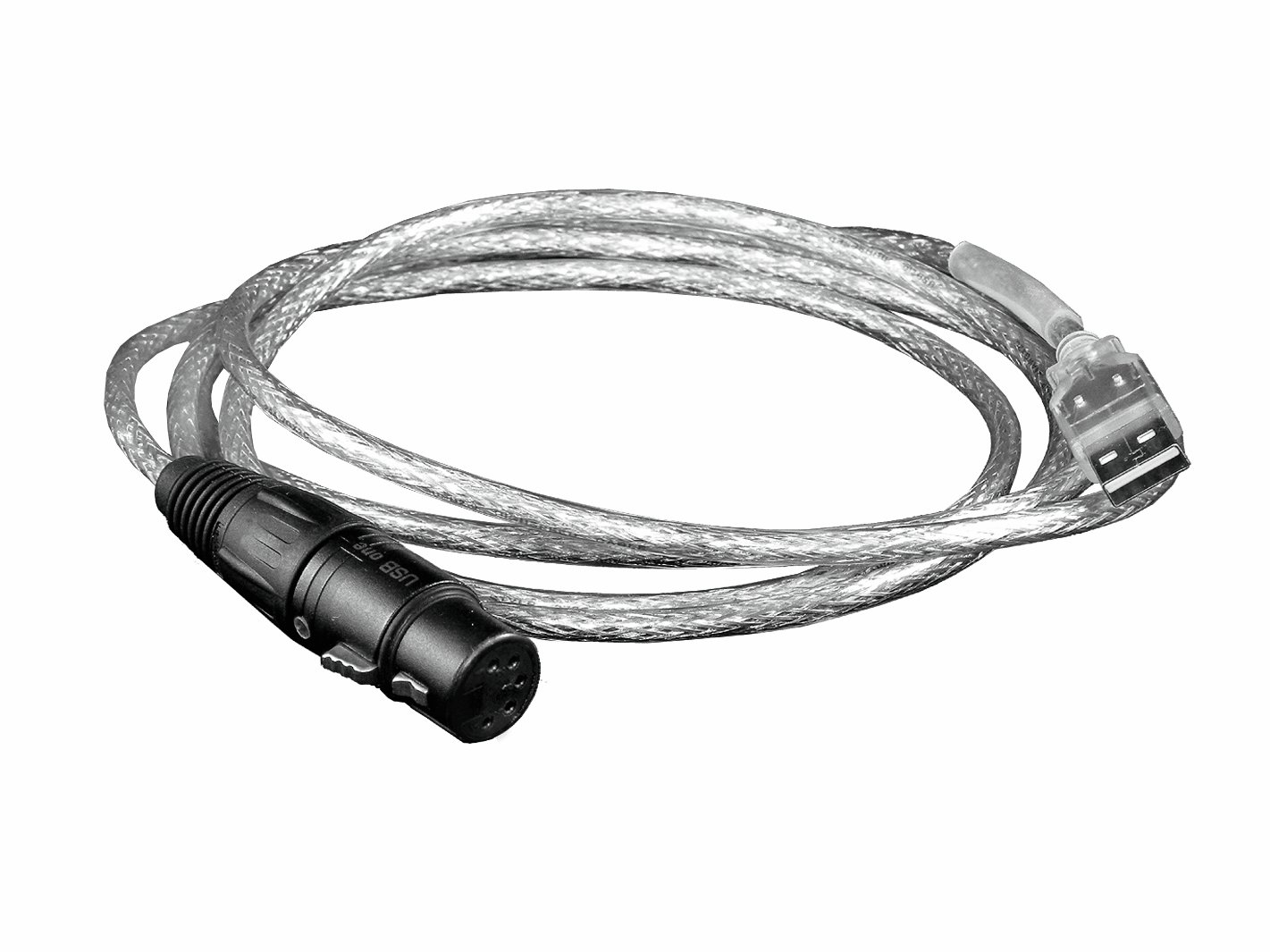

MADRIX USB ONE
MADRIX USB ONE is one of the smallest USB interfaces for DMX output or input on the market. It allows you to control 512 DMX channels using MADRIX 5.
DMX-IN/OUT With 5-Pin NEUTRIK XLR Port
This device allows you to send or receive DMX data using 512 DMX channels. A male-to-male 3-pin or 5-pin XLR Gender Changer is required for DMX-IN.
USB 2.0 Standard
Devices can be connected to and disconnected from the computer during use and without a reboot.
Power over USB
The interface is powered directly via the USB port and does not need an additional power supply.
Remote Control
MADRIX 5 can be controlled remotely using the implemented DMX-IN functions.
Frame rate stability
Up to 60 devices can be connected to a USB host controller without having any frame rate problems. (60 DMX512 interfaces amount to 30,720 DMX channels).
Active USB
Please connect your USB ONE to an active USB 2.0 port or use a USB 2.0 hub with a power supply.
About MADRIX
MADRIX products are proudly designed, engineered, and made in Germany. We are creating high-quality products for you that are easy to use and reliable. Innovative features will bring you the best results.
We feel that our responsibility is more than just creating prime products. We are also responsible of how we create them: We are intentionally choosing eco power for our office. We have deliberately chosen cardboard as the main part of our product packaging, since it is a renewable resource. In this way, we are also actively minimizing our plastics usage to reduce the environmental impact.
Features
USB-DMX cable to send/receive DMX signals with MADRIX software
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX
- Built with NEUTRIK connector
- The device can be connected via USB to the PC in connection with MADRIX software
- Compatible with Win 7, Win 8, Win 10,
- Made in Germany
- Engineered in Germany
- For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
Technical specifications
| Power supply: | 5 V DC 500 mA |
| Power connection: | Fixed power supply cord for USB A mains connection |
| DMX channels: | Input 512 Output 512 |
| DMX output: | 1 x 5-pin XLR (F) |
| Control: | DMX |
| USB port: | USB 2.0, type A |
| Use of brands: | Built with NEUTRIK connector |
| PC connect: | MADRIX software via USB |
| Weight: | 100 g |
| Operating system: | Win 7, Win 8, Win 10, |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4260263421011 | 0,11 kg | 15cm x 14cm x 2,5cm |
