Description

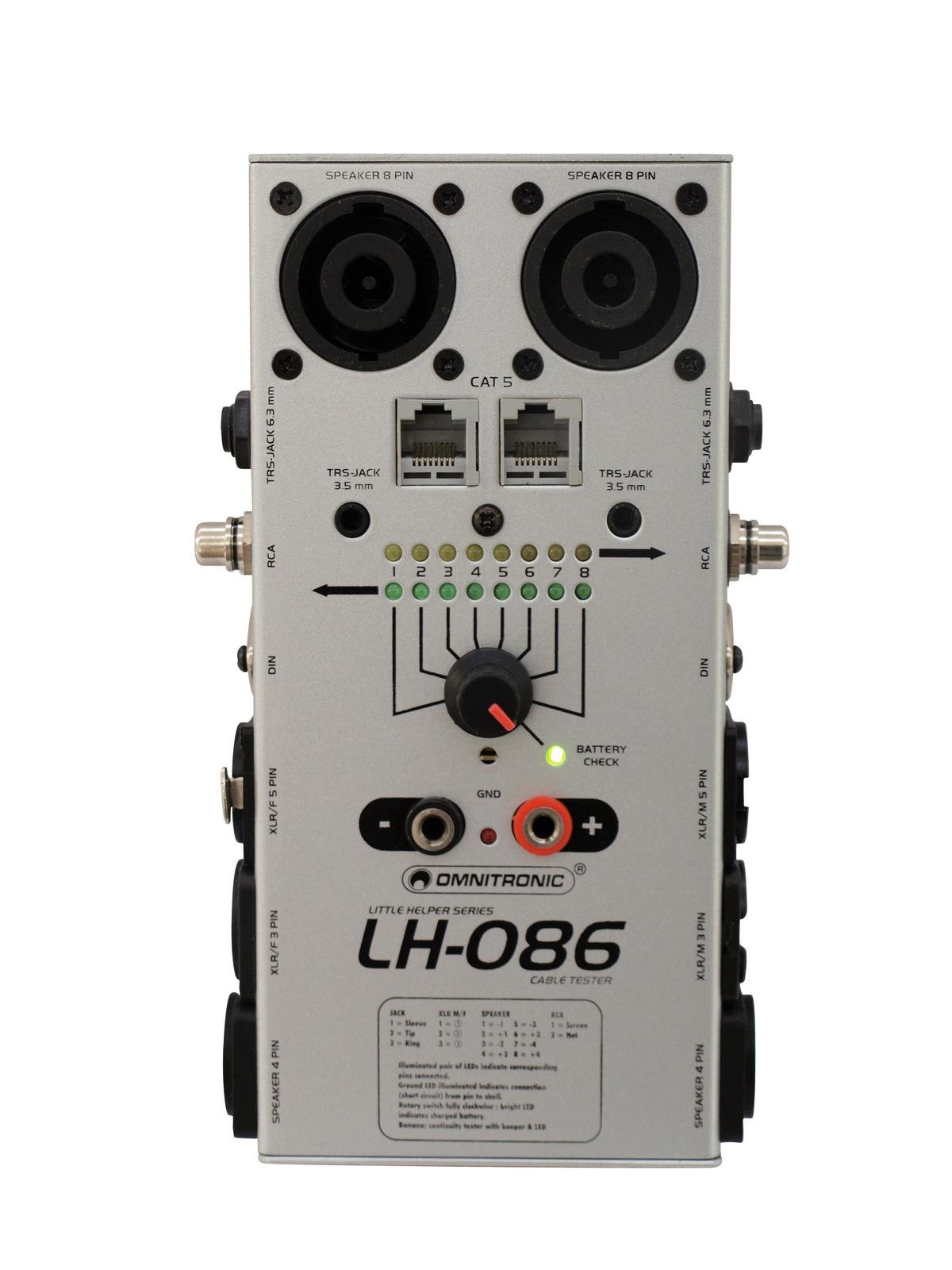

The OMNITRONIC LH-086 controls the function of 3 and 5-pin XLR-, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4 and 8-pin speaker cables and connections. A polarity and short-circuit display enables an easy control. Testing the continuity via two banana sockets is possible as well.
Features
Cable tester for XLR, jack, CAT5, DIN, RCA, Speaker
- Ideal cable test for all cable connections in the studio and for live applications
- Tests 3+5-pin XLR, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4+8-pin Speaker cables and connections
- Polarity and short-circuit display
- Comfortable selection via rotary switch
- Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
- Indispensable helper for musicians, sound and stage technicians
- For application areas such as: Mobile use; mobile djs / entertainer
Package contents
- 1 x device, 2 x measuring cable, 1 x user manual, 1 x battery
Technical specifications
| Power connection: | Battery/battery pack |
| Cable length: | 1 m |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |

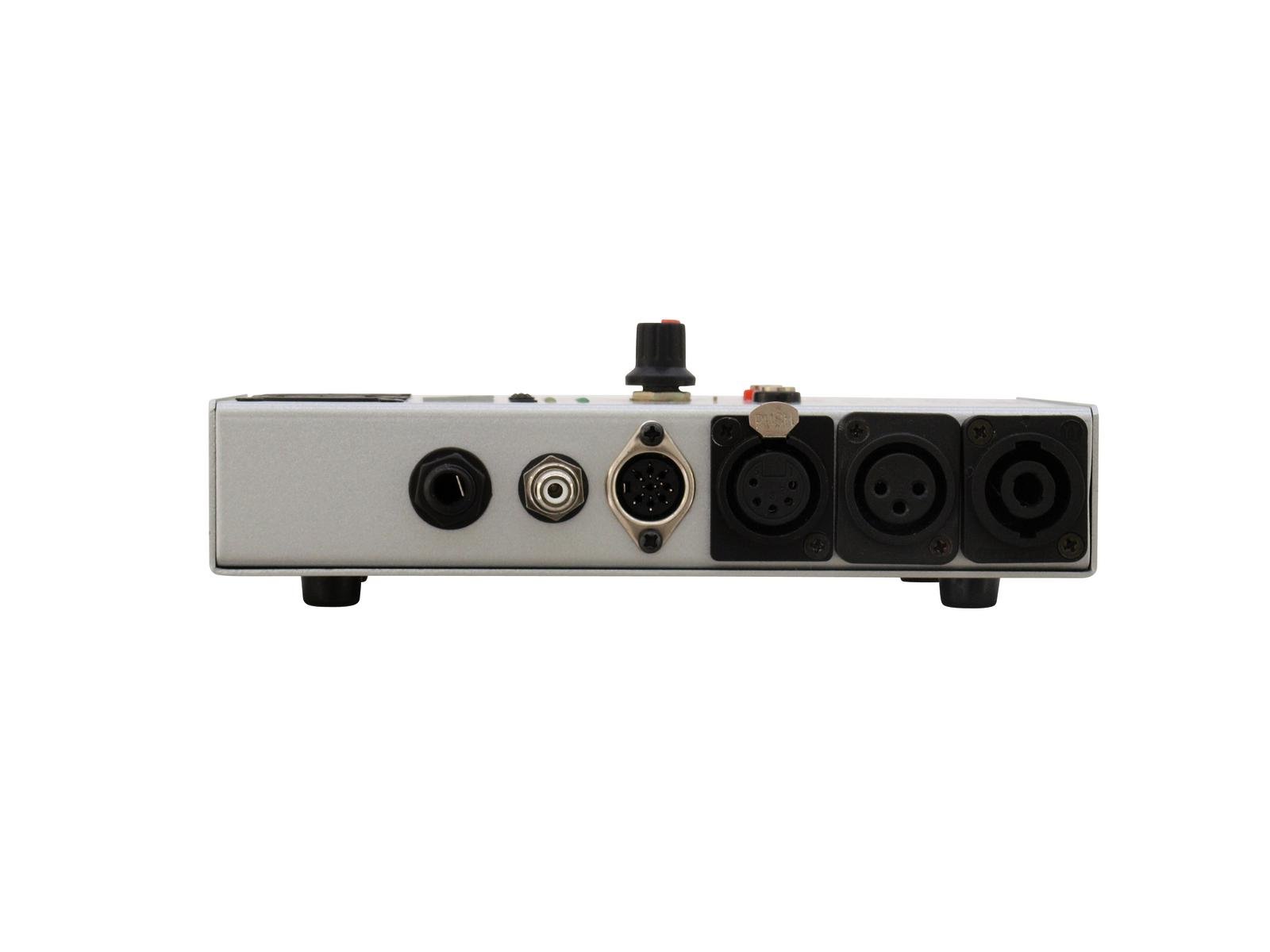

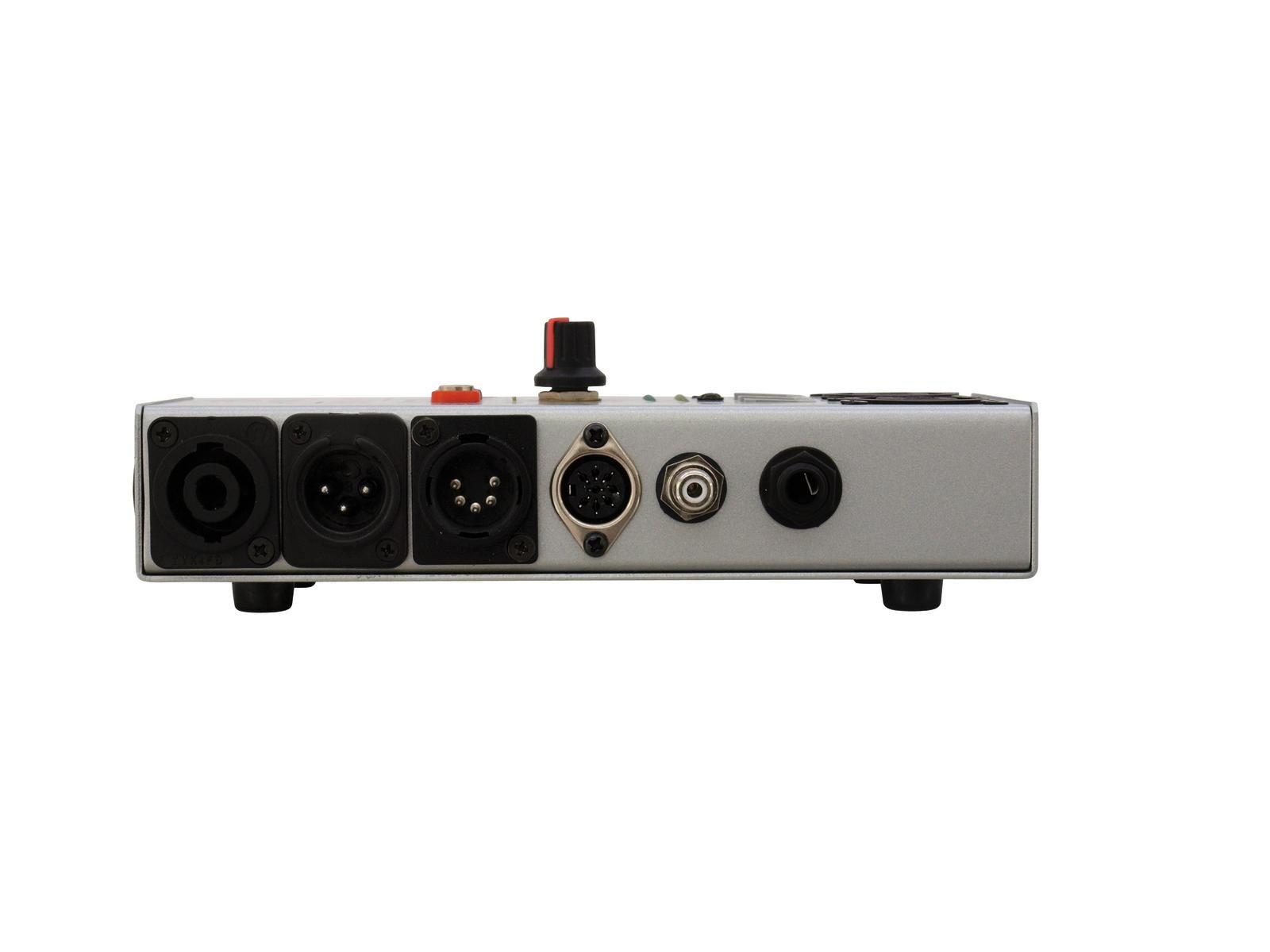

| Connections: | RJ-45 (F) mounting version 3.5 mm jack (stereo) mounting version RCA (F) mounting version 3-pin XLR 5-pin XLR Speaker built-in socket (F) 6.3 mm jack socket (stereo) mounting version 5-pin DIN (F) mounting version |
| Color: | Silver |
| Dimensions: | Width: 11,2 cm Depth: 19 cm Height: 6 cm |
| Weight: | 900 g |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397361957 | 0,97 kg | 21,5cm x 12cm x 7cm |
